Etchells World Champions


Ultralight Racing Compass
Add to cart More Details

"Simplify, then add lightness"

-Colin Chapman CBE, Founder of Lotus Cars

The Prism is a stripped down racing compass. The Prism provides unprecedented accuracy, coupled with a massive display, in a compact package. At a mere 137 g (4.8 oz) it is the world's lightest racing compass.

More Details

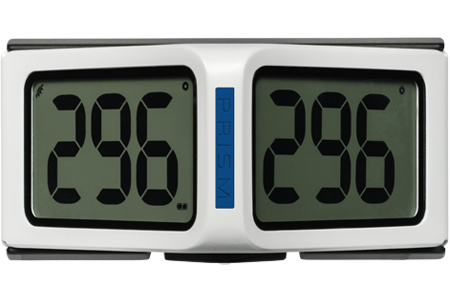

Massive digits

The Prism’s sunlight-readable, high-contrast LCD screen features 29.8mm (1.1”) tall digits in a font that’s optimized for readability. This means that if your boat’s under 40ft long you’ll be able to mount the Prism on your mast and read it easily from anywhere in the cockpit, even if you don’t have perfect vision.

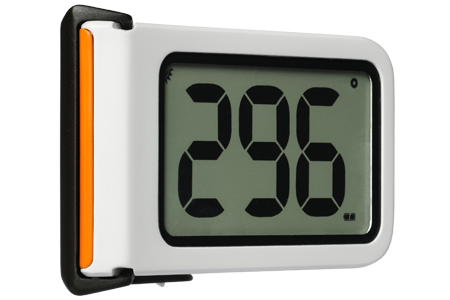

Ultra-wide viewing angle

With 250° of visibility the Prism’s LCDs can be easily read from the helm to the trapeze wire.

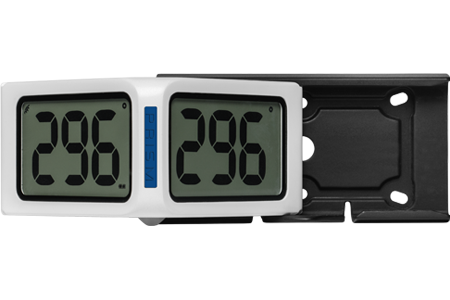

Flexible & secure mounting

The Prism mounts to your boat via the slide-in cradle. The Prism Cradle can be mounted to a wide array of brackets, directly to a mast using the centerline holes and the Mast Bracket Hardware Kit, or directly to a bulkhead. We even included recesses in the cradle in case you need to lash your compass in place.

Class Legal

The Prism uses only magnetic input as its heading reference, has no memory, no user inputs, and performs no arithmetic functions. It's legal in all classes that allow electronic compasses.

Class Legal. Viper 640. Sonar. Melges. 420. Moth. Shark. Thistle. Etchells. Laser. Tornado. Tasar. 49er FX. Soling. Dutchman. 49er. Flying Dutchman. J Boats. 29er. I-14. Hobie Star. Nacra. Snipe. Finn. F18. 470. 505. RS Sailing. Lightning. Dragon.


The Prism uses a high precision 3-axis solid state magnetometer designed for aerospace applications to provide superior accuracy and responsiveness.

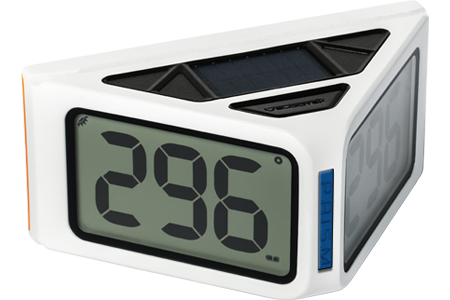

The Prism is battery powered with USB charging and solar backup.


The Prism is designed to withstand continuous immersion at 3m (9 ft). Every single unit that comes off the assembly line is pressure-tested before it ships.

Tech Specs


The Prism is a stripped down racing compass. Class legal anywhere an electronic compass is legal, the Prism provides superior accuracy, and a massive display all in an ultralight, compact package


What's Included:

  • Velocitek Prism
  • Mounting cradle
  • USB charging cable
  • EVA storage case


  • 4.8oz / 137 g
  • Height - 2.2” / 55mm
  • Width - 4.6” / 118mm
  • Depth - 2.6” / 67mm

Ready to race?

Buy Now
